Izatifikethi ze-CE eziphathwayo zeKhaya eziSebenzisa iDijithali ixesha elide le-Inverter 3000w iGenereyitha yepetroli ethuleyo
Isiguquli seDijithali seDijithali yeZiqinisekiso zeZiqinisekiso ze-CE eziphathwayo yi-3000w ijeneretha yepetroli ethuleyo eyenzelwe ixesha elide. Ivumela unikezelo lwamandla olufanelekileyo kunye olusebenzayo ekhaya, ngelixa uqinisekisa ukusebenza okuthe cwaka.
Indawo yemvelaphi | eSuzhou, eTshayina |
Izinto ezimbili | Iplastiki +intsimbi |
Uhlobo: | Ijenereyitha yepetroli okanye isikhululo samandla esiphathwayo |
Imodeli | DL8500E |
Igama lomfanekiso | Wepolink |
Isiqinisekiso | 5 Iminze |
Ukusetyenziswa | Back-up amandla |
Isatifiketi | CE, RHOS, EPA, CARB. EU V,PSE, UN38.3,MSDS, ISO9001 |
Ilogo | Ukuprintwa kweleyibhile, ukuprintwa kwesilika. |
Izincedisi | Iintambo zokutshaja, iisokethi, iingxowa zesixhobo, iincwadana. |
Ixabiso lasefektri | Thethathethwana |
Umbala: | Mnyama, bomvu, luhlaza, luhlaza, orenji |
Amandla okunikezela | 20000iseti ngonyaka |
Igama lokubhatala ngokubhaliweyo | T / T, L / C, Cash, Western Union, paypal |
Min.Umyalelo | Ipisi enye |
Iinkcukacha zokuPakisha:
1. Ngobuninzi: Ngaphakathi: I-Polybag+EPE igwebu, ngaphandle: Ikhathoni ebotshiweyo+iphalethi.
2. Palletizing: Iziqwenga ezili-18 kwipalethi nganye.
Qala iBhayi: Shanghai
Ixesha elikhokelo:
Iintsuku ezi-7 zokusebenza zesampula.
Iintsuku ze-50 zokusebenza kwi-odolo eninzi.
OEM / ODM: Iyafumaneka

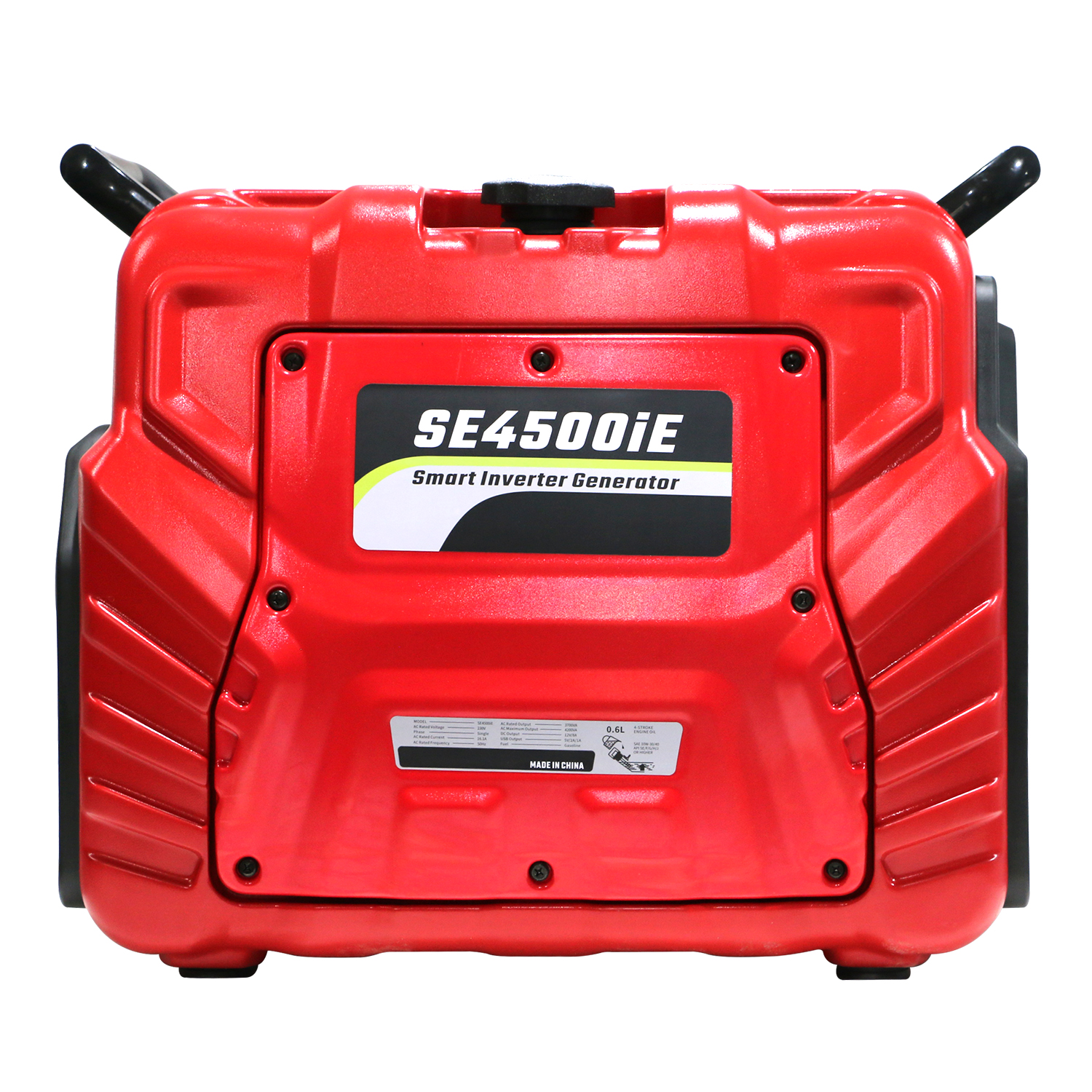

Ngokuphuma okuphezulu kwe-4200w, i-3700w ephumayo, i-SE4500iE esuka kwi-DRIVELONG ifanelekile kwi-RV yakho, uhambo lwakho lokuhlala enkampini, impelaveki yokumisa, iiprojekthi zangaphandle kunye nomthombo wamandla okugcina ngexesha likaxakeka. Xa kuthelekiswa neejenereyitha zemveli kwimarike, i-SE4500iE ineengenelo ezicacileyo, ngaphandle koyilo lwayo oluhlala luhleli kunye noludibeneyo. Yijenereyitha yokutshintsha okuthe cwaka, inokusetyenziswa ngeendlela ezininzi ezifana nejenereyitha yokukhempisha, ukuqhuba ukhenketho kunye nokunye.
Inkcazelo yemveliso
Intshayelelo yeParameter
DIMENSIONS AND WEIGHT | ||
Imodeli | SE 2000i(E) | SE 4500iE |
Ubude bubonke | 530mm (20.9 ngaphakathi) | 650mm (25.6 ngaphakathi) |
Ububanzi ngokubanzi | 320mm (12.6 ngaphakathi) | 475mm (18.7 ngaphakathi) |
Ubude bubonke | 430mm (16.9 ngaphakathi) | 550mm (21.7 ngaphakathi) |
Ubunzima obomileyo | 24kg / 26kg (53 lbs / 57 lbs) | 50kg (110 lbs) |
ENGINE | |||
Uhlobo: | I-4-stroke petroli ye-OHV | I-4-stroke petroli ye-OHV | |
Inkqubo yokupholisa | Umoya onyanzelweyo | ||
ULungiselelo lweSilinda | Ifakwe, isilinda enye | ||
Ukufuduswa | 80i-cm3 | 212i-cm3 | |
Bore×Stroke | 48.6mm×43.0mm (1.91 ku×1.69 ngaphakathi) | 70mm×55mm (2.76 ku×2.17 ngaphakathi) | |
Iiyure zokuSebenza | 3.5Hr @ umthwalo olinganisiweyo | 6Hr @ umthwalo olinganisiweyo | |
8Hr@1/4 rated umthwalo | 15Hr@1/4 rated umthwalo | ||
Isibaso | Ipetroli engenalothe | ||
Umthamo weTanki yeFuel | 4.2L (1.11 US gal) | 13L (3.43 US gal) | |
I-Oli ye-Engine Capacity | 0.35L (0.37 US qt) | 0.6L (0.63 US qt) | |
I-Ignition System | CDI | ||
Ukuqalisa inkqubo | I-Recoil / Isiqalisi sombane / isiqalisi se-APP | Ukurhoxa & Isiqalisi sombane/ Isiqalisi se-APP | |
Iplagi yentlantsi | Uhlobo: | A5RTC (TORCH) | F7RTC |
Umbala weSpephu | 0.6~0.7mm (0.024~0.028in) | 0.7~0.8mm (0.027~0.031in) | |
INqanaba loMbane weNxolo(LWA) @ Ukusuka kwi-7m | 53~63dBA | 55~65dBA | |
GENERATOR | |||
Imveliso ye-AC | Imveliso yeWaveform | I-Pure-Sine Wave, iTHD <3% | |
I-Voltage elaliweyo | 100/110/120/220/230/240V | ||
Ireyithwe rhoqo | 60/50hz | ||
Isiphumo esilinganiselweyo | 1.8kva | 3.7kva | |
Esona siphumo siphezulu | 2.1kva | 4.2kva | |
Uhlobo lwesiXhobo soKhuseleko | Electronic | ||
Imveliso yeDC | I-Voltage elaliweyo | 12V | |
Ikalwe ngoku | 8A | ||
USB | 5V/2A/1A | ||
Uhlobo lwesiXhobo soKhuseleko | DC uMkhuseli | ||
NOTE
Inkcazo yemveliso ye-generator isekelwe kwimo engqongileyo esemgangathweni ngolu hlobo lulandelayo:
● Ukuphakama: 0m
● Ubushushu be-Ambient: 25℃
● Ukufuma okuhambelanayo: 30%
Izinto eziluncedo kwimveliso
1.ISinewave enyulu & Itekhnoloji ye-Smart throttle.
2.Amandla omelele ngakumbi & Uthule kakhulu.
3.Ukuphatheka okungazange kubonwe ngaphambili "ngomxhuzulane obunzima" & Isixhobo se-roller yomhlaba wonke.
4.Can walala ngecala layo akukho ukuvuza, nto leyo enkulu ngokukhuselekileyo ethwele emotweni.
5.Smartphone APP esweni kunye nolawulo.
6.Amandla aphezulu anelungelo elilodwa lomenzi wechiza kunye nokungqubana & ukumelana nokukrwempa.
Umsebenzi we-7.Parallel unokudibanisa iiyunithi ezi-2 kunye ukuze ufumane amandla aphindwe kabini.
8.Easy ukuqalisa ukulayita.
I-9.Ihambelana ne-EU kunye ne-US yokukhutshwa kunye nesiqinisekiso sokhuseleko.
10.Umgangatho ongcono kunye newaranti yeminyaka emi-5.
